Introduction

Connect Ranger to Wi-Fi to synchronize its logged data to Aeroqual Cloud.

You can also connect Ranger to Aeroqual Cloud using your mobile phone as a hotspot by following the instructions on the video below

Video Overview

How to connect Ranger to Wi-Fi using a cell phone

  1. From the main screen, enter the Settings menu by pressing and holding the LEFT ARROW
    • From the main screen, enter the Settings menu by pressing and holding the LEFT ARROW

  2. Navigate to the Wi-Fi submenu Then, navigate to the Networks submenu
    • Navigate to the Wi-Fi submenu

    • Then, navigate to the Networks submenu

  3. Next will appear a list of available Wi-Fi networks
    • Next will appear a list of available Wi-Fi networks

    • Select the network you'd like to connect to.

    • To refresh the list of available networks, exit and re-enter the current menu.

    • Please note that the Ranger may not connect to an Open network.

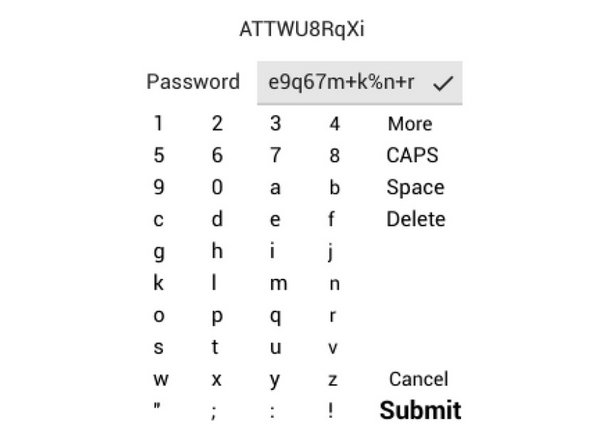

  4. Enter the Wi-Fi password To select a capital letter, select "CAPS" To select from a list of special characters, select "More"
    • Enter the Wi-Fi password

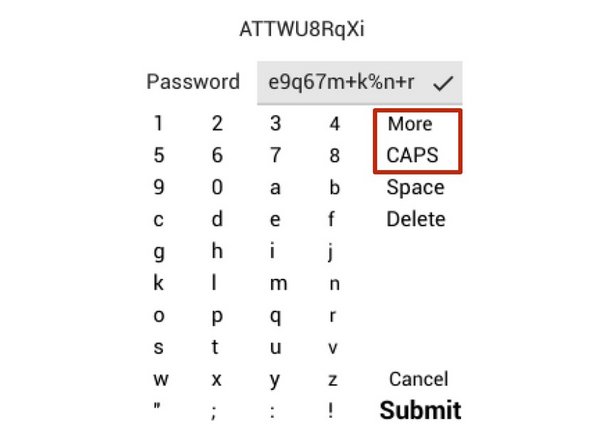

    • To select a capital letter, select "CAPS"

    • To select from a list of special characters, select "More"

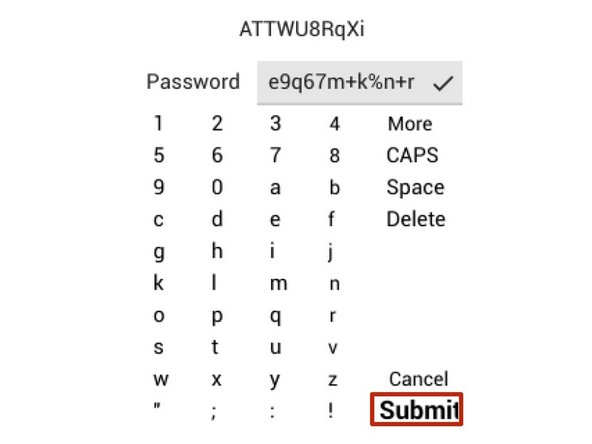

    • Finally, select "Submit"

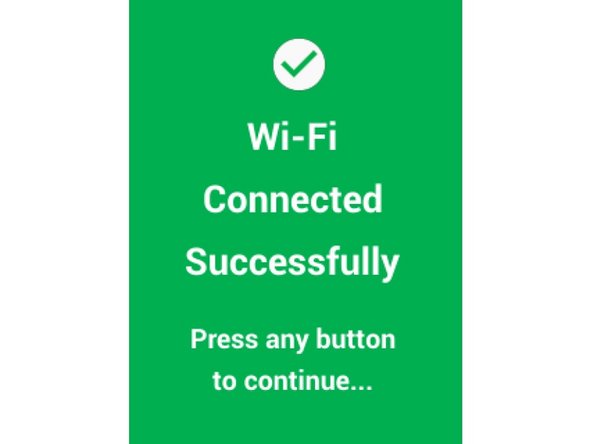

  5. A message will appear, confirming a successful or failed connection to Wi-Fi. To exit the Settings menu and return to the Main screen, press and hold the LEFT ARROW Confirm that the Wi-Fi icon now appears on the Main screen

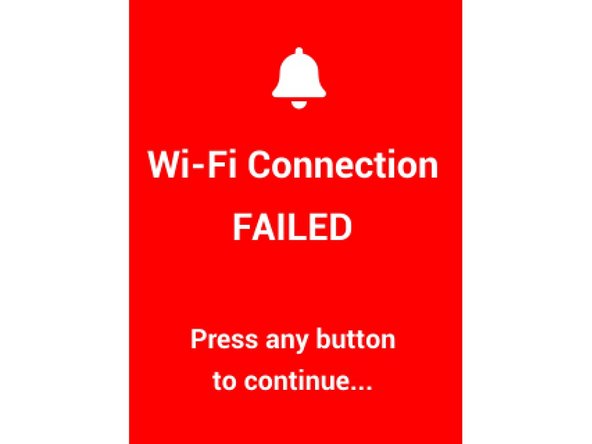

    • A message will appear, confirming a successful or failed connection to Wi-Fi.

    • To exit the Settings menu and return to the Main screen, press and hold the LEFT ARROW

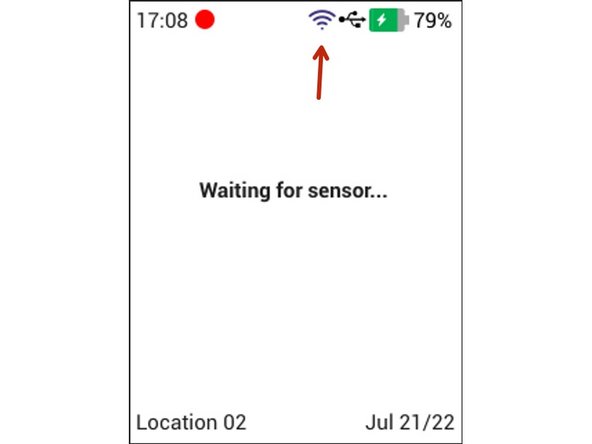

    • Confirm that the Wi-Fi icon now appears on the Main screen

    • Ranger can remember multiple Wi-Fi networks

Conclusion

For further support, contact Aeroqual Support.
