  1. Open your SM70 box and verify all components have been shipped as per the packing slip.
    • Open your SM70 box and verify all components have been shipped as per the packing slip.

    • SM70 monitor

    • 12 VDC power adaptor

    • Mounting brackets

    • User guide

    • Contact Aeroqual or your representative if you suspect any parts are missing.

  2. Find a location that's free from  any contaminants that might affect the performance of the sensor. The monitor is 130 x 94 x 57mm and weighs 270g.
    • Find a location that's free from any contaminants that might affect the performance of the sensor.

    • The monitor is 130 x 94 x 57mm and weighs 270g.

    • Attach your SM70 to the wall using the mounting brackets that came with the monitor. The brackets fit into the holes at each corner of the enclosure.

    • Alternatively, you can screw the monitor directly to the wall using the concealed, tamperproof screw holes in the corner posts of the enclosure.

  3. Plug the 12 VDC power adapter that came with your SM70 directly into the monitor and mains power.
    • Plug the 12 VDC power adapter that came with your SM70 directly into the monitor and mains power.

    • To start the monitor, simply turn it on at the mains switch.

    • At start up, the status LED on the sensor board flashes green 2-6 times at an interval of 0.5 seconds. During the following 3 minute warm-up, it flashes at an interval of 2 seconds.

    • The inbuilt warming cycle allows the sensor to achieve a stable baseline. Under certain conditions, the warm-up time may be longer. If it's the first time the monitor has been powered on, it's recommended to run it for 24 hours for stable readings.

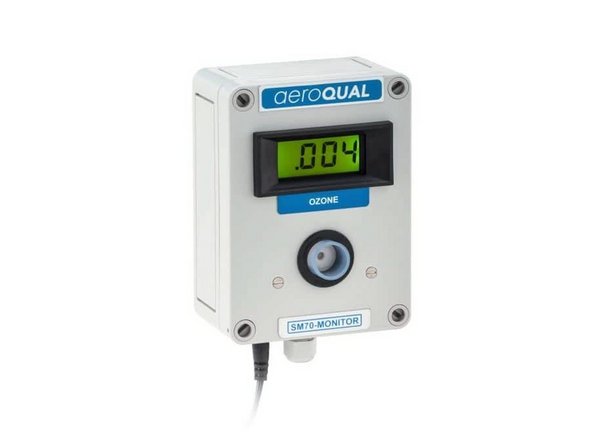

  4. The SM70 is designed to run constantly and when it does so, the status LED on the sensor board glows green.
    • The SM70 is designed to run constantly and when it does so, the status LED on the sensor board glows green.

    • During operation, real-time gas concentrations display continuously on the monitor's integrated LCD display.

    • When the relay is energized, the relay LED on the sensor board glows red .

    • To stop the monitor, turn it off at the mains switch.

Conclusion

For further support, contact Technical Support.
