Mount monitor

The AQY 1 comes with a mounting bracket for mounting to a wall or pole.

Key holes on the back of the monitor allow the bracket to be fixed vertically or horizontally.

Alternatively, you can attach the bracket using the M3 screw mount points.

There are 2 cable tie points to secure the power cable.

Choose a location with good airflow away from sources that might affect data, e.g. kitchen vents and air conditioning units.

Leave at least 5 meters space either side of the monitor, and at least 2.4 meters space above and below it.

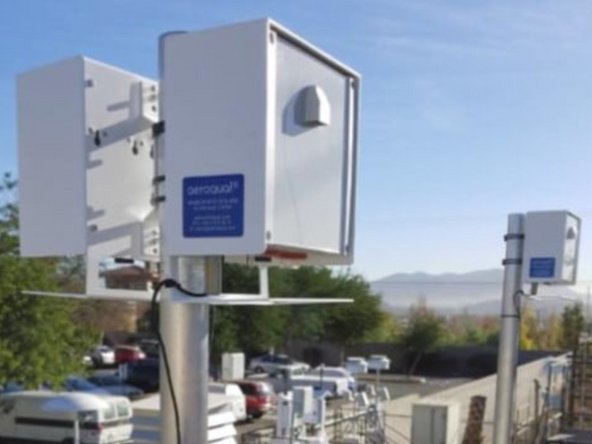

Mount the monitor against a pole or wall using the mounting bracket.

Connect the 5 meter power cable to an indoor mains power socket.

Secure the power cable using zip ties.
