Attach gas inlet

Written By: Tanya Taylor (and 2 other contributors)
  • Comments: 0
  • Favorites: 0
  • Completions: 4

Steps

3

Time Required

00:15:00 - 00:30:00

Sections

1

Flags

0

Tools

Parts

No parts specified.

  1. If you are installing the instrument, or setting it up outdoors, attach the gas inlet via the ¼ inch Swagelok compression fitting. If you are setting up the instrument indoors to test or configure the instrument connect an activated carbon scrubber (blue filter - AIC FILTER23).

    • If you are installing the instrument, or setting it up outdoors, attach the gas inlet via the ¼ inch Swagelok compression fitting.

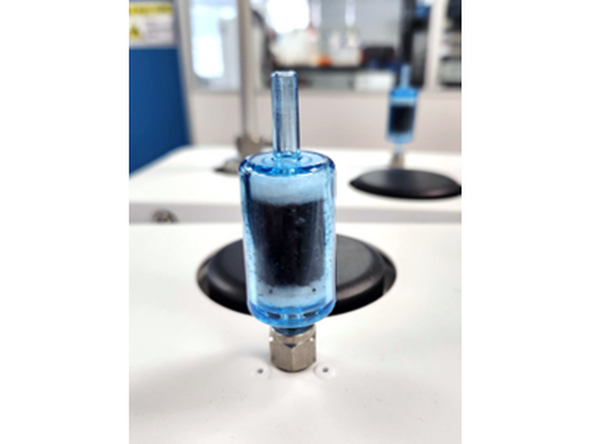

    • If you are setting up the instrument indoors to test or configure the instrument connect an activated carbon scrubber (blue filter - AIC FILTER23).

  2. Perform a flow check to make sure the inlet is fitted correctly and the sample pump is working properly.

    • Perform a flow check to make sure the inlet is fitted correctly and the sample pump is working properly.

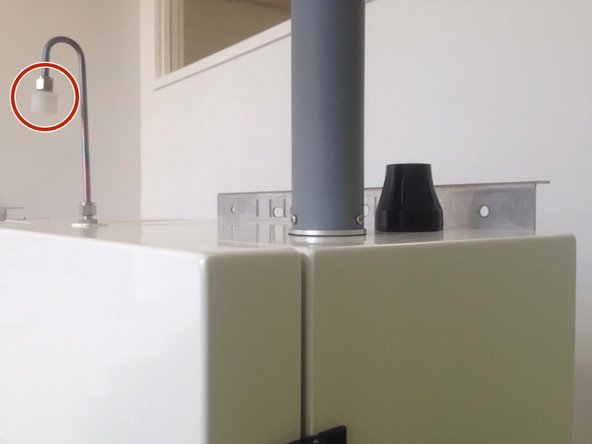

  3. Fit the supplied Kynar fitting to the Swagelok nut at the end of the sample cane. This fitting contains the mesh filter.

    • Fit the supplied Kynar fitting to the Swagelok nut at the end of the sample cane. This fitting contains the mesh filter.
