  1. Turn off the monitor by pulling the 12V DC fuse out from the fuse holder. Or, use the rotary switch in the bottom right hand corner of the enclosure to turn the monitor off.
    • Turn off the monitor by pulling the 12V DC fuse out from the fuse holder.

    • Or, use the rotary switch in the bottom right hand corner of the enclosure to turn the monitor off.

  2. The PM inlet is held by a ½” Swagelok compression fitting and ships with a cap fitted to prevent debris ingress
    • The PM inlet is held by a ½” Swagelok compression fitting and ships with a cap fitted to prevent debris ingress

    • Remove the cap from Swagelok fitting

    • Fit the two o-rings to the grooves in the PCX inlet

    • Press the TSP inlet on to the inlet tube ensuring the o-rings remain in the groove.

    • Insert the PM inlet into the Swagelok fitting and carefully tighten. Thread tape is NOT required.

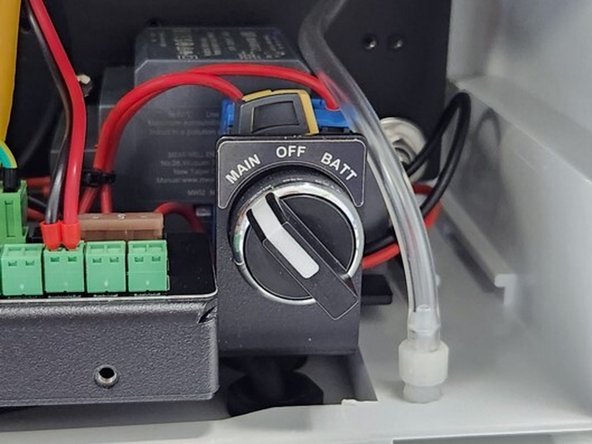

  3. When you're satisfied the inlet is secure, turn on the monitor by pushing the 12V DC fuse into the fuse holder. Air begins to flow through the inlet.
    • When you're satisfied the inlet is secure, turn on the monitor by pushing the 12V DC fuse into the fuse holder. Air begins to flow through the inlet.

    • Or, use the rotary switch in the bottom right hand corner of the enclosure to turn the monitor on.

Conclusion

For further support, contact Technical Support.
