Introduction
Use this guide to charge a lithium battery using the 12VDC AC/DC lithium smart charger.
Tools
No tools specified.
Parts
-
-
Never charge the battery in a hermetically sealed container.
-
Always charge the battery at temperatures between 0-45°C.
-
Recharge your battery only with the supplied AC/DC adapter.
-
-
-
The battery can be charged with the sensor head on or off.
-
Plug the 12VDC AC/DC lithium smart charger into the monitor base and mains power.
-
Turn the charger on at the mains switch.
-
With the charger plugged in and monitor off, allow 3 hours for the battery to fully charge.
-
The battery can be charged when the monitor is on but it will charge more slowly.
-
-
-
Keep an eye on the smart charger LED status to know when the battery is fully charged.
-

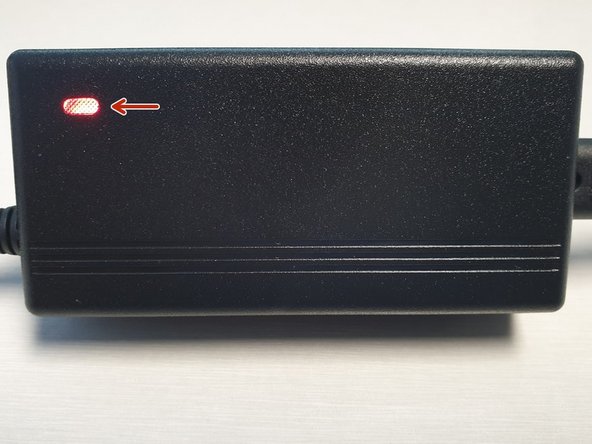

Red LED = Battery is detected and charging
-

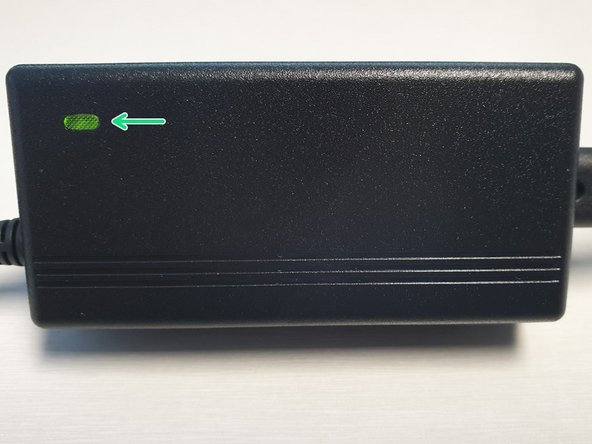

Green LED = Battery is fully charged or not detected
-
A fully charged battery runs for about 8 hours depending on the sensor head being used.
-
The battery indicator doesn't represent the remaining battery life.
-
If you have a nickel battery, you can tell it's charging when the battery icon on the monitor's display flashes.
-
