Introduction
The AQY R comes with an integrated DC/DC converter, allowing operation on an input voltage of 9 to 36 V. Positive and negative leads should be installed through the cable gland in the rear of the instrument.
Parts
No parts specified.
-
-
Remove AQY-R from mounting bracket
-
Loosen cable gland and insert power lead through cable gland.
-
-
-
Secure positive lead in terminal block connected to RED wiring, and negative lead in terminal block that goes to BLACK wiring.
-
If required create a loop to relieve strain on power lead.
-
Ensure battery leads are not energized for this step to avoid risk of sparks or electrical shock.
-
-
-

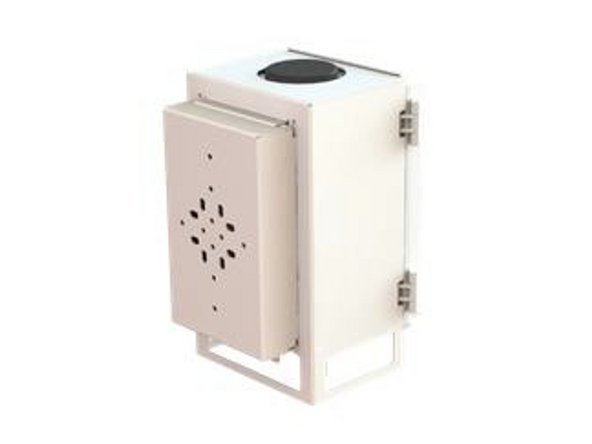

Tighten cable gland
-
Refit mounting bracket.
-
Almost done!
For further support, contact Technical Support.
