  1. The monitor comes with:
    • The monitor comes with:

    • 2 x mounting brackets

    • 3 x U-bolts for 45mm (1½”) diameter poles

    • 2 x metal bands for pole diameters between 21-44mm (1-1½”)

    • 2 x metal bands for pole diameters between 59–82mm (2-3”).

    • The brackets can be used for either pole or fence mounting.

  2. For pole mounting, secure the top mounting bracket at a suitable height using two U-bolts or metal bands.
    • For pole mounting, secure the top mounting bracket at a suitable height using two U-bolts or metal bands.

    • For fence mounting, screw the brackets into the fence instead of using the U-bolts.''

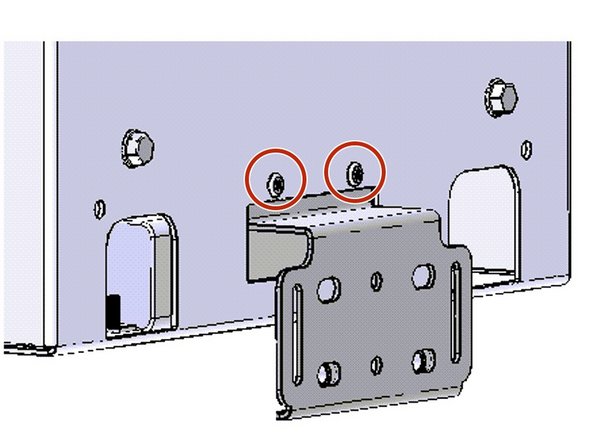

  3. Fix lower mounting bracket to the monitor’s chassis with screws.
    • Fix lower mounting bracket to the monitor’s chassis with screws.

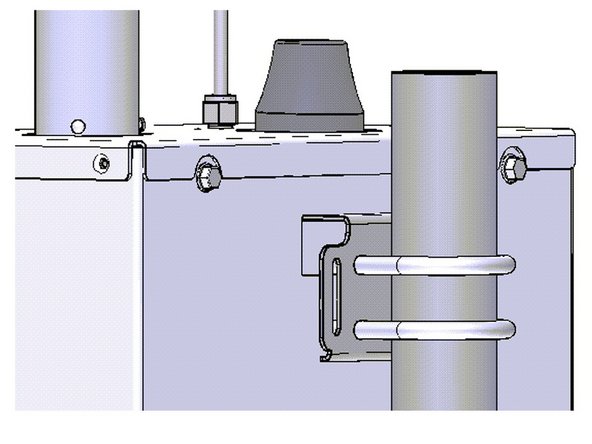

  4. Align the slot on the back of the monitor with the top mounting bracket and lower the monitor on to the bracket.
    • Align the slot on the back of the monitor with the top mounting bracket and lower the monitor on to the bracket.

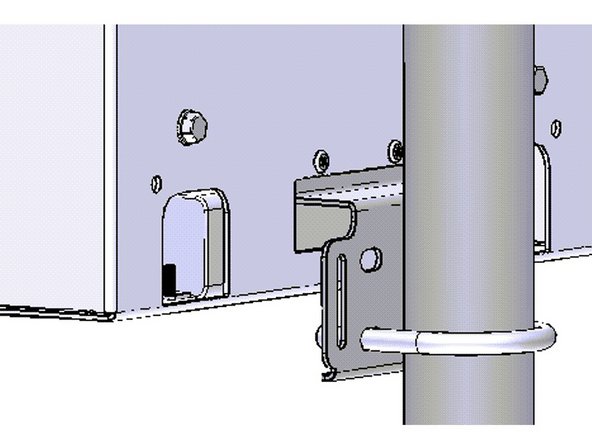

  5. Place U-bolt or metal band through lower mounting bracket.
    • Place U-bolt or metal band through lower mounting bracket.

    • Note: Only one U-bolt is used to secure the bottom bracket.

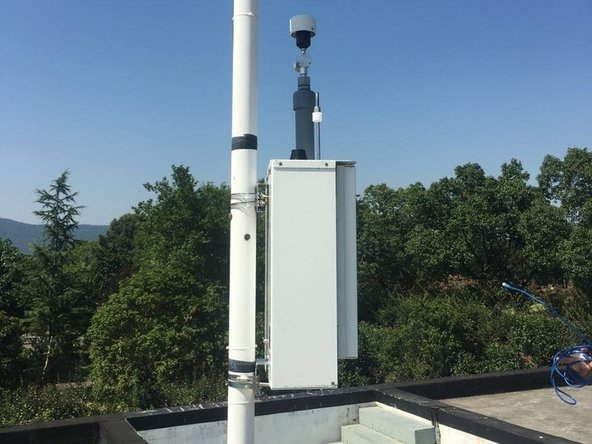

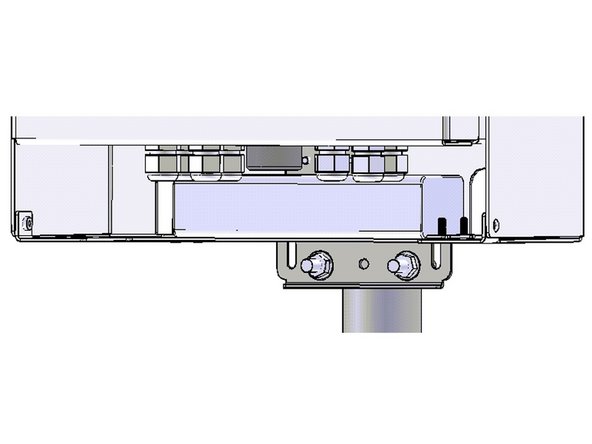

  6. Add nuts and washers and tighten the bottom U-bolt into position. Add nuts and washers and tighten the bottom U-bolt into position.
    • Add nuts and washers and tighten the bottom U-bolt into position.

    • For extra help, watch our video.
