  1. In this typical installation, a monitor is fixed to a pole that's set in a concrete pad.
    • In this typical installation, a monitor is fixed to a pole that's set in a concrete pad.

  2. In this installation, the monitor sits on a stand set in concrete. It's secured to a backing pole, which prevents it from falling off the stand. The stand has an open base that allows airflow underneath the monitor. Alternatively, you can use a stand by itself. In this case, stainless steel brackets are used to fix the monitor to the stand. Alternatively, you can use a stand by itself. In this case, stainless steel brackets are used to fix the monitor to the stand.
    • In this installation, the monitor sits on a stand set in concrete. It's secured to a backing pole, which prevents it from falling off the stand. The stand has an open base that allows airflow underneath the monitor.

    • Alternatively, you can use a stand by itself. In this case, stainless steel brackets are used to fix the monitor to the stand.

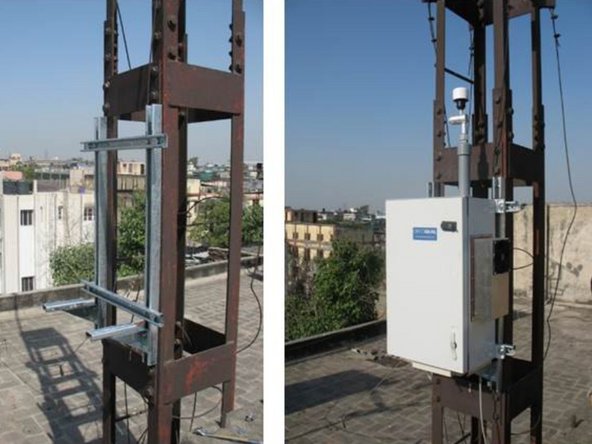

  3. At this site, custom-made brackets secure the monitor to a strong radio mast.
    • At this site, custom-made brackets secure the monitor to a strong radio mast.

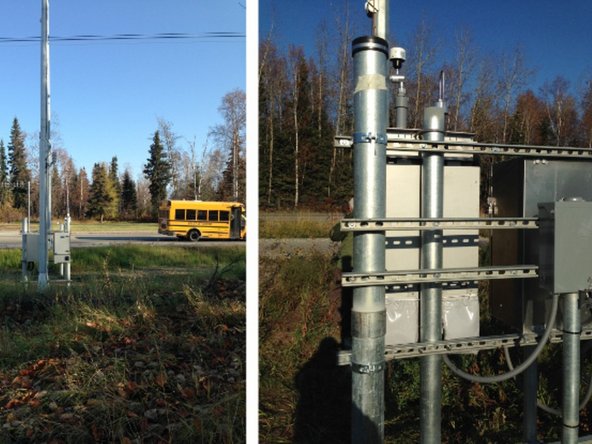

  4. In the example, the monitor is mounted alongside other roadside (traffic) monitoring equipment.  It takes advantage of the existing mounting structure and power supply.
    • In the example, the monitor is mounted alongside other roadside (traffic) monitoring equipment. It takes advantage of the existing mounting structure and power supply.

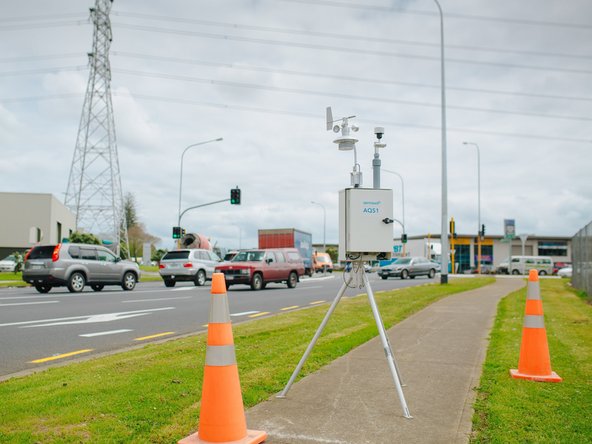

  5. For short-term projects, a strong tripod is an option. Aeroqual supplies a tripod but any tripod available in your local market can also be used.
    • For short-term projects, a strong tripod is an option.

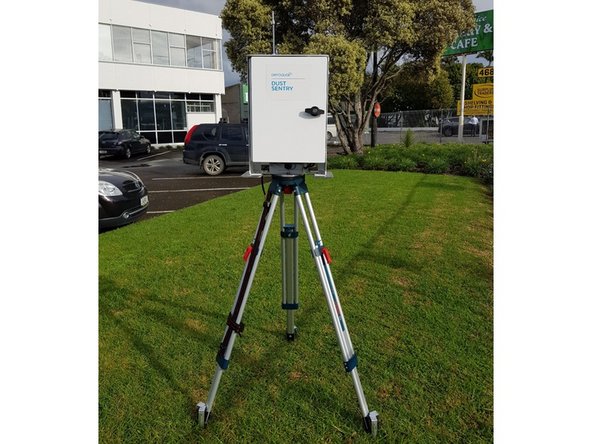

    • Aeroqual supplies a tripod but any tripod available in your local market can also be used.

    • For AQS 1, Dust Sentry and Dust Sentry Pro monitors, Aeroqual also supplies a kit for mounting to a surveyor's tripod.

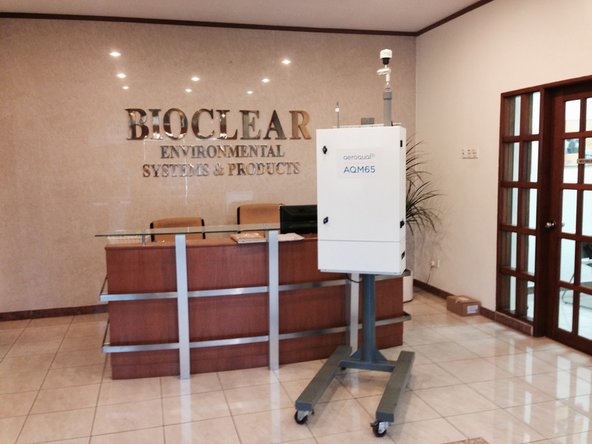

  6. A mobile stand on wheels offers flexibility for indoor monitoring.
    • A mobile stand on wheels offers flexibility for indoor monitoring.

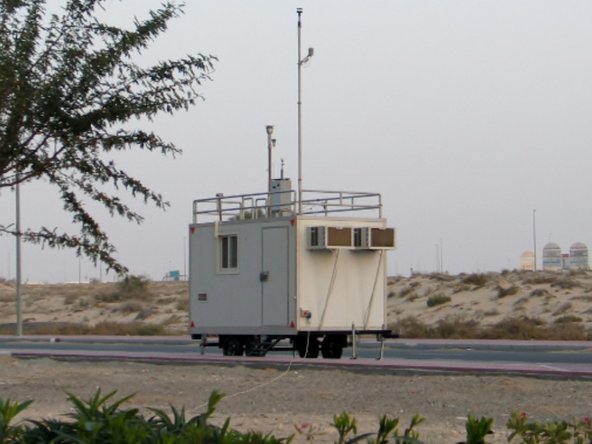

  7. In this installation, the monitor is fixed to railing on the roof of a mobile trailer. A separate pole supports the wind sensor.
    • In this installation, the monitor is fixed to railing on the roof of a mobile trailer. A separate pole supports the wind sensor.

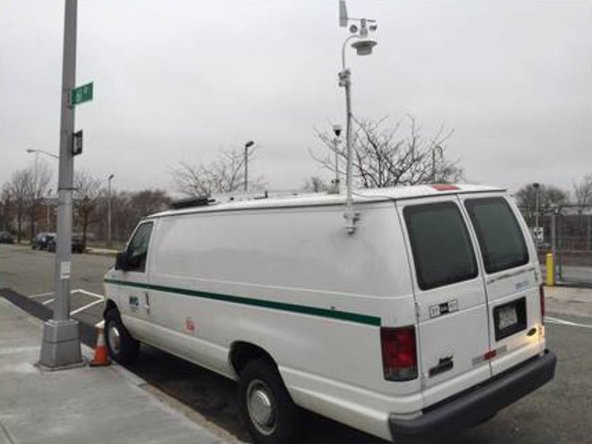

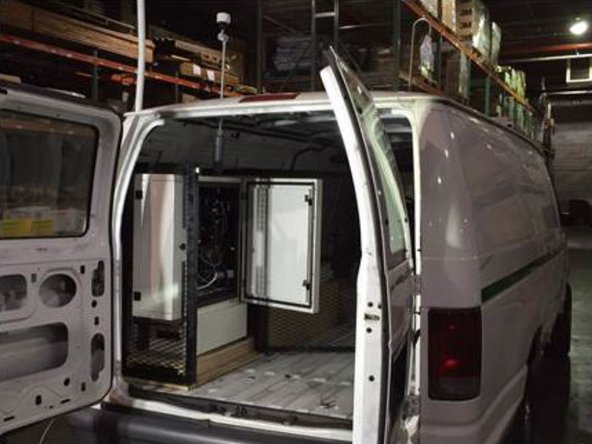

  8. Alternatively, you can install a monitor in a van for mobile monitoring. Alternatively, you can install a monitor in a van for mobile monitoring.
    • Alternatively, you can install a monitor in a van for mobile monitoring.

Conclusion

For further support, contact Technical Support.
