Output connections - 0-5V analog

Written By: Geoff Henshaw
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Steps

2

Time Required

Suggest a time??

Sections

1

Flags

0

Introduction

The 0-5V analog output is available on Ranger with firmware version 1.1.0 or later

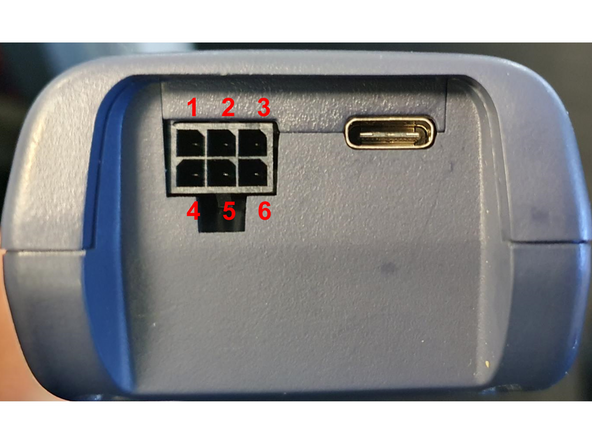

  1. The connector plug is a Molex Micro-Fit 3.0 6-way connector (e.g. Molex P/N: 2064610600).

    • The connector plug is a Molex Micro-Fit 3.0 6-way connector (e.g. Molex P/N: 2064610600).

    • Pin 5 = 0-5V ANALOG Pin 6 = GND

  2. Set the the 0-5V analog output channel and scale via the Settings menu on Ranger

    • Set the the 0-5V analog output channel and scale via the Settings menu on Ranger

    • The voltage on the 0-5V analog output pin will then scale with the sensor concentration.

    • If the Ranger detects a sensor error it will set the 0-5V output to 5 V

Conclusion

For further support, contact Aeroqual Support.
