Introduction

Changing the sharp cut cyclone on the inlet requires a simple change in the software.

  1. Enter service mode so any fluctuations in the data caused from this activity can be excluded from air quality reports.
    • Enter service mode so any fluctuations in the data caused from this activity can be excluded from air quality reports.

  2. Change the sharp cut cyclone on the inlet. Change the sharp cut cyclone on the inlet.
    • Change the sharp cut cyclone on the inlet.

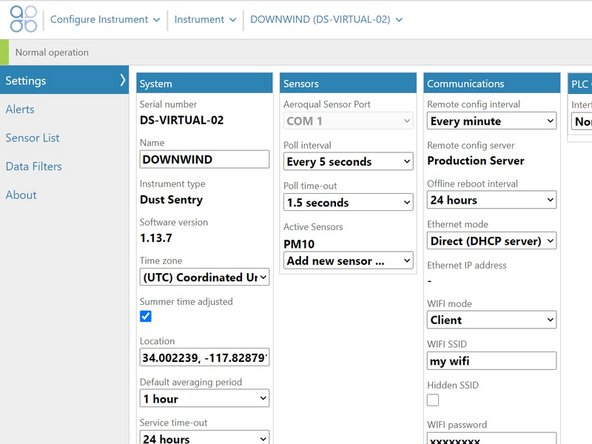

  3. From the home screen, click Configure. Click Settings from the side menu.
    • From the home screen, click Configure.

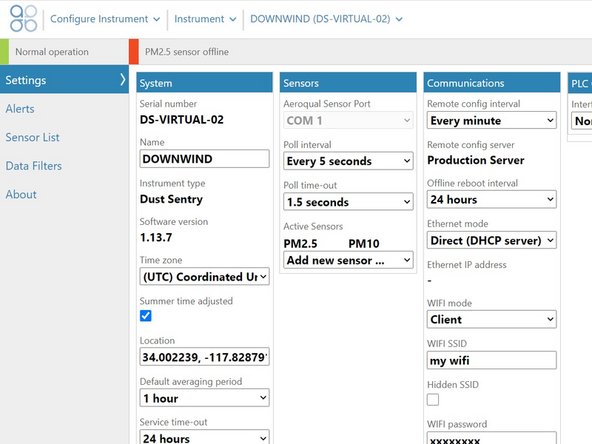

    • Click Settings from the side menu.

    • Select the new cyclone from the Add new sensor drop-down in the Sensors column.

    • The new cyclone shows up as offline initially.

    • Don't remove the old cyclone yet.

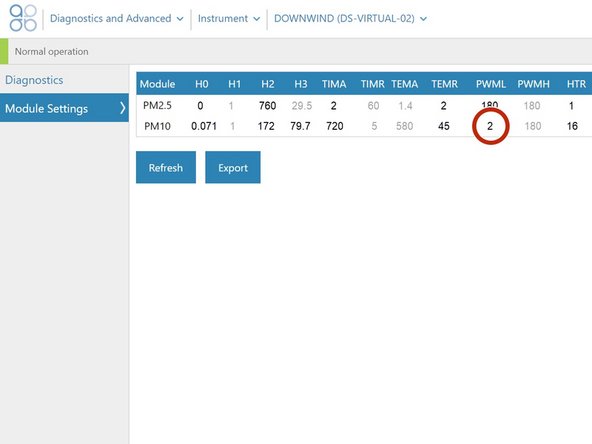

  4. From the home screen, click Diagnostic and Advanced.
    • From the home screen, click Diagnostic and Advanced.

    • Select Module Settings from the side menu.

    • Change the PWML setting for the previous cyclone to the PWML setting for the new cyclone. In this example, it changed from 3 to 2.

    • 4 = TSP

    • 3 = PM 10

    • 2 = PM2.5

    • 1 = PM1.0

    • When the confirmation message appear, click Save.

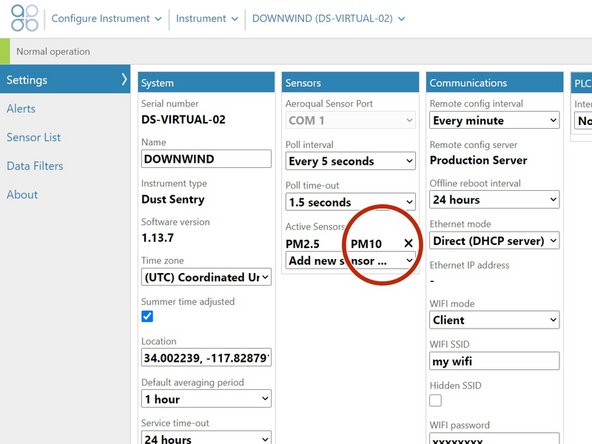

  5. Return to the Configure app.
    • Return to the Configure app.

    • Wait a few minutes until the previous cyclone appears offline.

    • Remove the old cyclone from the Active Sensors list by hovering over the sensor name and clicking the cross that displays.

    • Click Save when the confirmation message appears.

Conclusion

For further support, contact Technical Support.
