Set alarm points

Written By: StJohn Vuetilovoni (and one other contributor)
  • Comments: 1
  • Favorites: 0
  • Completions: 2

Difficulty

Easy

Steps

3

Time Required

00:10:00

Sections

1

Flags

0

Introduction

Use this guide to set alarm points for your monitor.

  1. Press the ENTER button and select MONITOR SETUP from the main menu. Select ALARM POINTS from the secondary menu. Select ALARM POINTS from the secondary menu.

    • Press the ENTER button and select MONITOR SETUP from the main menu.

    • Select ALARM POINTS from the secondary menu.

  2. Use the UP/DOWN buttons to select the required high (HI) concentration set point. Press ENTER to confirm the change. Use the UP/DOWN buttons to select the required low (LO) concentration set point.

    • Use the UP/DOWN buttons to select the required high (HI) concentration set point.

    • Press ENTER to confirm the change.

    • Use the UP/DOWN buttons to select the required low (LO) concentration set point.

    • Press ENTER to confirm the change.

    • Use the UP/DOWN buttons to ENABLE the alarm.

    • Press ENTER to confirm the selections and return to the main menu.

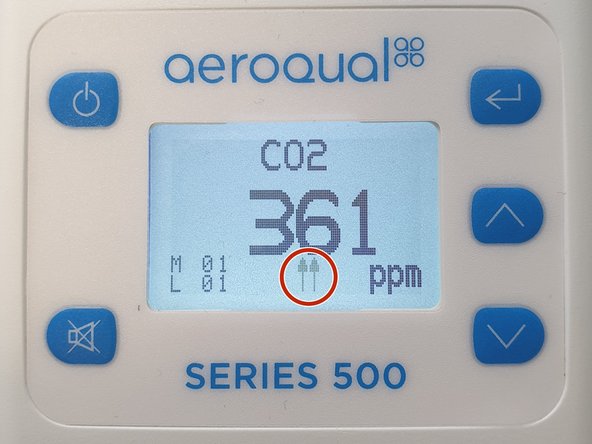

  3. When the high concentration set point is exceeded, two upward arrows appear on the main display accompanied by a fast beep.

    • When the high concentration set point is exceeded, two upward arrows appear on the main display accompanied by a fast beep.

    • When the low concentration set point is exceeded, two downward arrows appear on the main display accompanied by a slow beep.

Conclusion

For further support, contact Technical Support.
