Introduction
When you activate the MIN MAX AV option, the display shows the minimum, maximum and average readings values for your installed sensors.
Note: The min, max and average values are displayed but they aren’t logged. The general expectation with averaging is that you log data every minute, export the data to MS Excel file and then calculate averages from the raw data.
-
-
Press the ENTER button and select MIN MAX AV from the main menu. This displays the START option.
-
Select START using the UP/DOWN buttons and press ENTER to confirm. This starts the measurement cycle.
-
Use the UP/DOWN buttons to select EXIT and return to the readings screen.
-
If you have a Series 500 or 300 monitor, MIN MAX AV can also be started by pressing the DOWN button for 2 seconds.
-
-
-
The readings screen now shows the minimum, maximum and average readings for the measurement cycle. RD is the current reading.
-
The display scrolls every time a new set of readings is taken.
-
-
-

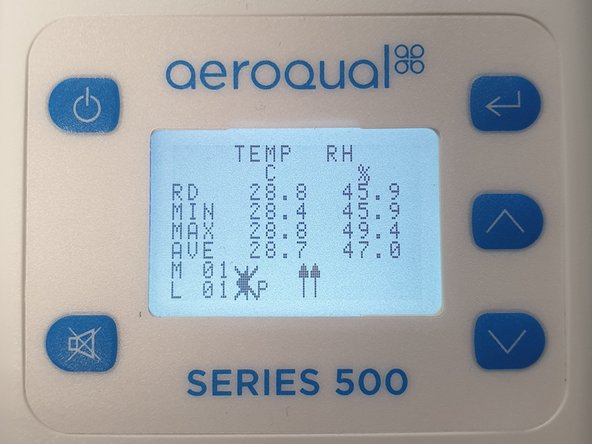

If a temperature / relative humidity sensor is fitted, its values alternate on screen with the measurement values from the sensor head.
-
-
-

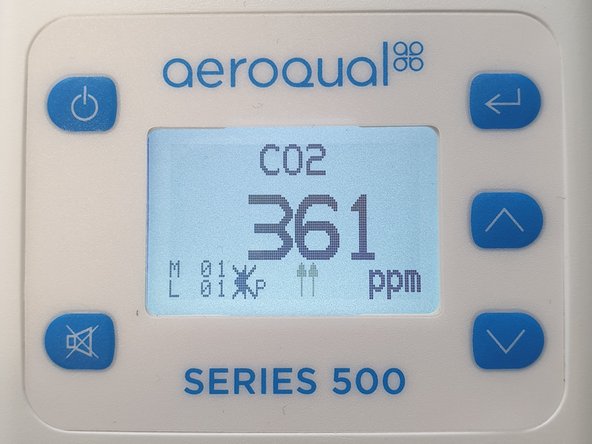

Press the ENTER button and select MIN MAX AV from the main menu. This displays the STOP option.
-
Select STOP using the UP/DOWN buttons and press ENTER to confirm.
-
Use the UP/DOWN buttons to select EXIT and return to the default display screen.
-
If you have a Series 500 or 300 monitor, MIN MAX AV can also be stopped by pressing the DOWN button for 2 seconds.
-
For further support, contact Technical Support.
For further support, contact Technical Support.
