Introduction

If your monitor’s inlet flow rate is lower than expected, it could be because one of the modules has a leak or is blocked. To check this, perform a leak check on the individual gas modules.

To understand how often you should perform this service activity, click here.

Tools

No tools specified.

Parts

  1. Enter service mode so any fluctuations in the data caused from this activity can be excluded from air quality reports.
    • Enter service mode so any fluctuations in the data caused from this activity can be excluded from air quality reports.

  2. Read the PDF attached to the end of this user guide to understand the expected flow rate for each gas module.
    • Read the PDF attached to the end of this user guide to understand the expected flow rate for each gas module.

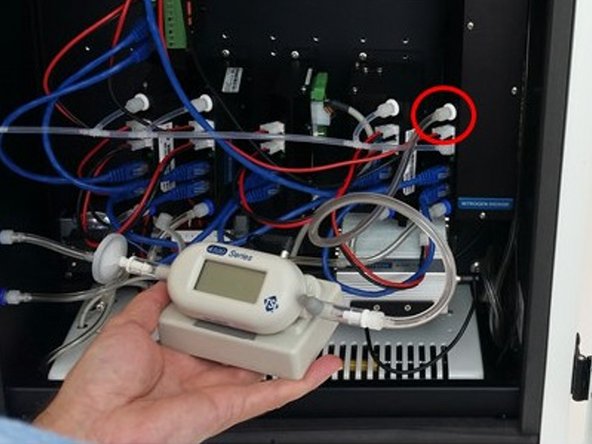

  3. Disconnect the incoming PFA tubing from the the inlet port (white ring) of the gas module.
    • Disconnect the incoming PFA tubing from the the inlet port (white ring) of the gas module.

    • Attach a high-quality flowmeter such as the TSI 4040 or the Bios Defender DryCal to the inlet port (white ring) of the gas module.

    • Reconnect the PFA tubing to the gas module’s inlet port.

    • Repeat these steps for each gas module.

Conclusion

For further support, contact Technical Support.
